FEATURES
|
1000PSI/PN63
|
Full Port
|
|
Investment Casting
|
Blow-out Proof Stem
|
|
Locking Device Handle(Option)
|
PED97/23/EC(CE0035) Approved
|
|
Casting Approved AD2000-WO
|
Inspection Testing:AP1598,EN12266
|
|
Thread:ASME B1.20.1 BS21.DIN2999/259,ISO228-1,JIS B 0203,ISO7/1
|

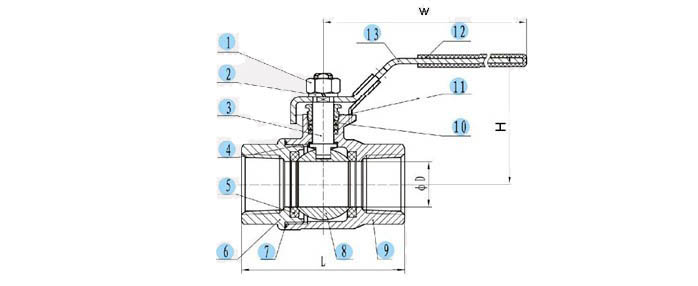

MATERIAL LIST
|
ITEM
|
DESIGNATION
|
MATERIAL
|
|
1
|
STEM NUT
|
SUS304
|
|
2
|
THRUST WASHER
|
SUS304
|
|
3
|
STEM
|
SUS304
|
|
4
|
STEM SEAL
|
PTFE
|
|
5
|
SEAT
|
RPTFE
|
|
6
|
CAP
|
CF8/CF8M
|
|
7
|
BODY SEAT
|
PTFE
|
|
8
|
BALL
|
CF8/CF8M
|
|
9
|
BODY
|
CF8/CF8M
|
|
10
|
STEM PACKING
|
PTFE
|
|
11
|
GLAND NUT
|
SUS304
|
|
12
|
PLASTIC COVER
|
PLASTIC
|
|
13
|
HANDLE
|
SUS304
|
DIMENSION TABLE
|
SIZE \\ ITEM
|
1/2
|
3/4
|
1
|
11/4
|
11/2
|
2
|
|
D
|
15
|
20
|
25
|
32
|
38
|
50
|
|
W
|
126
|
144
|
190
|
190
|
233
|
232
|
|
H
|
62
|
75
|
83
|
89
|
100
|
110
|
|
L
|
65
|
75
|
90
|
105
|
120
|
140
|
|
|
|
|
| |
