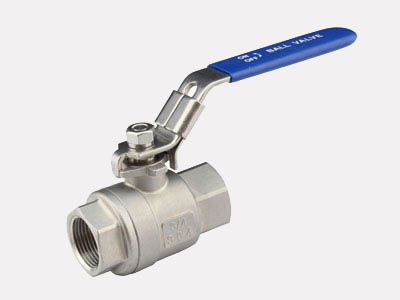

FEATURES
|
1000PSI/PN63
|
Full Port
|
|
Investment Casting
|
Blow-out Proof Stem
|
|
Locking Device Handle(Option)
|
PED97/23/EC(CE0035) Approved
|
|
Casting Approved AD2000-WO
|
Inspection Testing:AP1598,EN12266
|
|
Thread:ASME B1.20.1 BS21.DIN2999/259,ISO228-1,JIS B 0203,ISO7/1
|

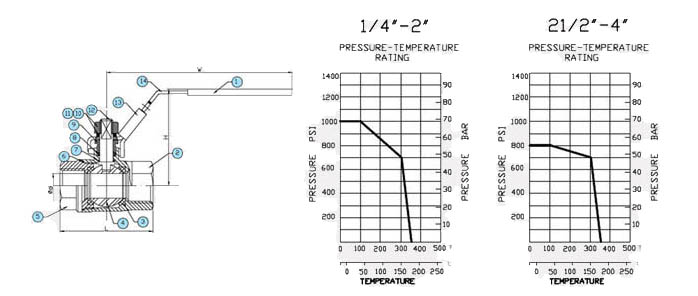

MATERIAL LIST
|
ITEM
|
DESIGNATION
|
MATERIAL
|
|
1
|
HANDLE COVER
|
PLASTIC
|
|
2
|
BODY
|
CF8/CF8M
|
|
3
|
BALL SEAT
|
PTFE
|
|
4
|
BALL
|
CF8/CF8M
|
|
5
|
CAP
|
CF8/CF8M
|
|
6
|
JOINT GASKET
|
PTFE
|
|
7
|
THRUST WASHER
|
PTFE
|
|
8
|
STEM PACKING
|
PTFE
|
|
9
|
GLAND NUT
|
SUS304
|
|
10
|
SPRING WASHER
|
SUS304
|
|
11
|
STEM NUT
|
SUS304
|
|
12
|
STEM
|
SUS304/316
|
|
13
|
LOCK DEVICE
|
SUS304
|
|
14
|
HANDLE
|
SUS304
|
DIMENSION TABLE
|
SIZE \\ ITEM
|
1/4
|
3/8
|
1/2
|
3/4
|
1
|
11/4
|
11/2
|
2
|
21/2
|
3
|
4
|
|
d
|
11.6
|
12.8
|
15
|
20
|
25
|
32
|
38
|
50
|
65
|
76
|
94
|
|
L
|
48.5
|
48.5
|
57
|
68
|
80
|
91
|
103
|
124
|
157
|
180
|
222
|
|
H
|
48
|
48
|
58
|
61
|
77
|
81
|
90
|
108
|
130
|
142
|
180
|
|
W
|
91
|
91
|
115
|
115
|
128
|
128
|
155
|
155
|
230
|
230
|
335
|
|
|
|
|
| |
