FEATURES
|
1000PSI/PN63
|
Reduce Port
|
|
Investment Casting
|
Blow-out Proof Stem
|
|
PED/97/23/EC(CE0036) Approved
|
W.P:1/4-21000psi,2.1/2-4800psi
|
|
PTFE seats & seals
|
inspection Testing:API598,EN12266
|
|
Thread:ASME B1.20.1
BS21.DIN2999/259,ISO228-1,JIS B 0203,ISO7/1
|

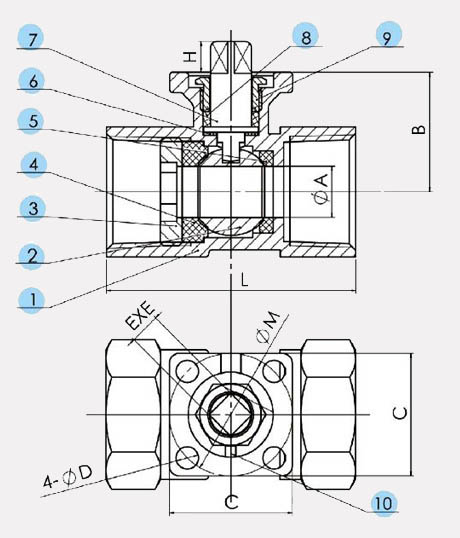

MATERIAL LIST
|
ITEM
|
DESIGNATION
|
MATERIAL
|
|
1
|
BODY
|
CF8/CF8M
|
|
2
|
BALL
|
CF8/CF8M
|
|
3
|
CAP
|
CF8/CF8M
|
|
4
|
BALL SEAT(A)
|
RPTFE
|
|
5
|
BALL SEAT(B)
|
RPTFE
|
|
6
|
THRUST WASHER
|
PTFE
|
|
7
|
STEM
|
SUS304
|
|
8
|
STEM PACKING
|
PTFE
|
|
9
|
GLAND
|
SUS304
|
|
10
|
BOLT
|
SUS304
|
|
ITEM SIZE
|
3/8\'\'
|
1/2\'\'
|
3/4\'\'
|
1\'\'
|
11/4\'\'
|
11/2\'\'
|
2\'\'
|
|
A
|
7
|
9.2
|
12.5
|
15
|
20
|
25
|
32
|
|
B
|
24
|
26
|
32
|
35
|
38
|
42
|
50
|
|
C
|
36
|
36
|
36
|
36
|
36
|
50
|
50
|
|
H
|
9
|
9
|
9
|
9
|
9
|
11
|
11
|
|
D
|
6.5
|
6.5
|
6.5
|
6.5
|
6.5
|
7
|
7
|
|
M
|
36
|
36
|
36
|
36
|
36
|
50
|
50
|
|
E
|
9
|
9
|
9
|
9
|
9
|
11
|
11
|
|
L
|
45
|
50
|
60
|
73
|
78
|
89
|
100
|
|
|
|
|
| |
