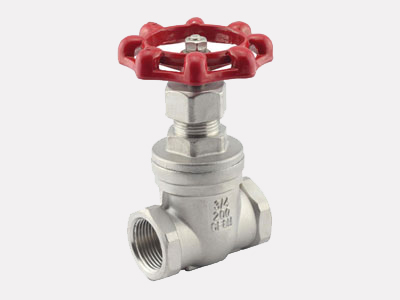

FEATURES
|
200PSI/PN16
|
Investment Casting
|
|
Locking Device Handle(Option)
|
PED97/23/EC(CE0035) Approved
|
|
Casting Approved AD2000-WO
|
Inspection Testing: API598,EN12266
|
|
Thread: ASME B1.20.1 BS21.DIN2999/259,ISO228-1, JIS B 0203,ISO7/1
|

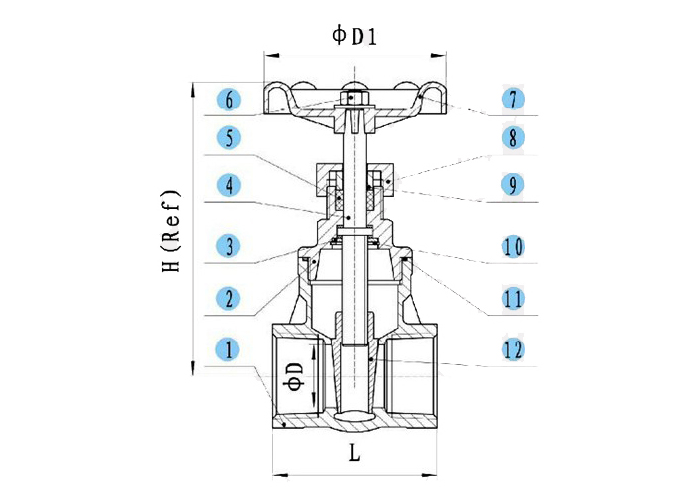

MATERIAL LIST
|
ITEM
|
DESIGNATION
|
MATERIAL
|
|
1
|
BODY
|
CF8/CF8M
|
|
2
|
BONNET
|
CF8/CF8M
|
|
3
|
STOP RING
|
SUS304
|
|
4
|
STEM
|
SUS304
|
|
5
|
PACKING
|
PTFE
|
|
6
|
HANDWHEEL NUT
|
SUS304
|
|
7
|
HANDWHEEL
|
ALUMINUM ALLOY
|
|
8
|
PACKING NUT
|
SUS304
|
|
9
|
RING
|
SUS304
|
|
10
|
LOCK NUT
|
SUS304
|
|
11
|
GASKET
|
PTFE
|
|
12
|
DISC
|
CF8/CF8M
|
DIMENSION TABLE
|
SIZE ITEM
|
1/2
|
3/4
|
1
|
11/4
|
11/2
|
2
|
|
D
|
15
|
20
|
25
|
32
|
40
|
50
|
|
H
|
92
|
99
|
113
|
128
|
147
|
168
|
|
D1
|
70
|
70
|
80
|
80
|
100
|
100
|
|
L
|
55
|
60
|
66
|
76
|
86
|
96
|
|
|
|
|
| |
