FEATURES
|
200PSI/PN16
|
Investment Casting
|
|
Locking Device Handle(Option)
|
PED97/23/EC(CE0035) Approved
|
|
Casting Approved AD2000-WO
|
Inspection Testing: API598,EN12266
|
|
Thread: ASME B1.20.1 BS21.DIN2999/259,ISO228-1, JIS B 0203,ISO7/1
|

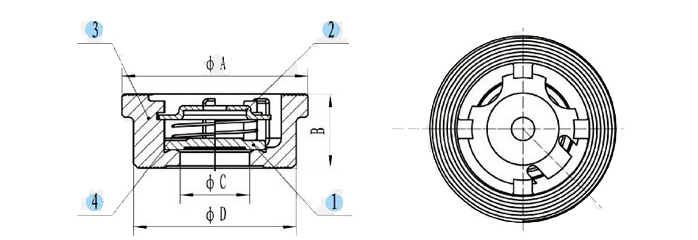

MATERIAL LIST
|
ITEM
|
DESIGNATION
|
MATERIAL
|
|
1
|
DISC
|
SUS304/SUS316
|
|
2
|
STOPPER
|
SUS304/SUS316
|
|
3
|
BODY
|
CF8/CF8M
|
|
4
|
SPRING
|
SUS304/SUS316
|
DIMENSION TABLE
|
SIZE ITEM
|
DN15
|
DN20
|
DN25
|
DN32
|
DN40
|
DN50
|
DN65
|
DN80
|
DN100
|
|
A
|
40
|
47
|
56
|
72
|
82
|
95
|
115
|
132
|
152
|
|
B
|
16
|
19
|
21
|
28
|
32
|
40
|
46
|
50
|
60
|
|
C
|
15
|
20
|
25
|
31
|
39
|
48
|
63
|
75
|
88
|
|
D
|
35
|
42
|
50
|
64
|
76
|
89
|
108
|
124
|
145
|
|
|
|
|
| |
