FEATURES
|
1000PSI/PN16
|
Investment Casting
|
|
Locking Device Handle(Option)
|
PED97/23/EC(CE0035) Approved
|
|
Casting Approved AD2000-WO
|
Inspection Testing: API598,EN12266
|
|
Thread: ASME B1.20.1 BS21.DIN2999/259,ISO228-1, JIS B 0203,ISO7/1
|

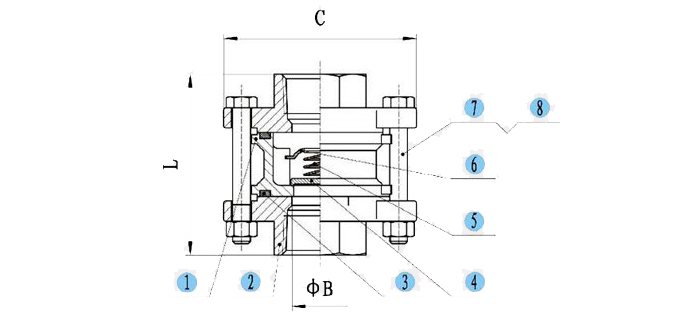

MATERIAL LIST
|
ITEM
|
DESIGNATION
|
MATERIAL
|
|
1
|
BODY
|
CF8/CF8M
|
|
2
|
CAP
|
CF8/CF8M
|
|
3
|
SEAL PACKING
|
PTFE
|
|
4
|
DISC
|
SUS304/SUS316
|
|
5
|
SPRING
|
SUS304/SUS316
|
|
6
|
STOPPER
|
SUS304/SUS316
|
|
7
|
BOLT
|
SUS304
|
|
8
|
NUT
|
SUS304
|
DIMENSION TABLE
|
SIZE ITEM
|
1/4\\\'\\\'
|
3/8\\\'\\\'
|
1/2\\\'\\\'
|
3/4\\\'\\\'
|
1\\\'\\\'
|
11/4\\\'\\\'
|
11/2\\\'\\\'
|
2\\\'\\\'
|
21/2\\\'\\\'
|
3\\\'\\\'
|
4\\\'\\\'
|
|
B
|
8
|
10
|
15
|
20
|
25
|
32
|
40
|
50
|
65
|
80
|
100
|
|
C
|
56
|
56
|
65
|
70
|
78
|
86
|
102
|
118
|
145
|
158
|
185
|
|
L
|
61
|
61
|
69
|
74
|
80
|
95
|
101
|
114
|
136
|
146
|
174
|
|
|
|
|
| |
