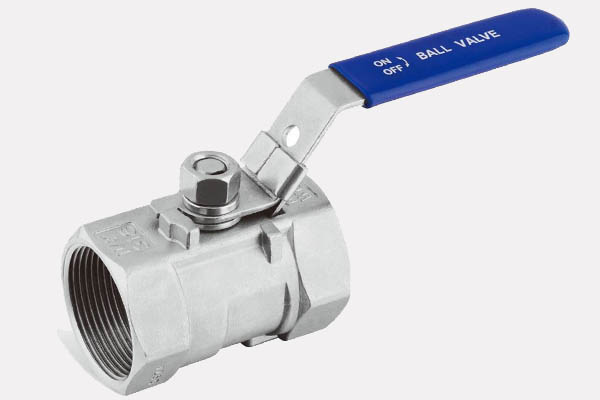

FEATURES
|
1000PSI/PN63
|
Reduce Port
|
|
Investment Casting
|
Blow-out Proof Stem
|
|
PED/97/23/EC(CE0036) Approved
|
W.P:1/4-21000psi,2.1/2-4800psi
|
|
PTFE seats & seals
|
inspection Testing:API598,EN12266
|
|
Thread:ASME B1.20.1
BS21.DIN2999/259,ISO228-1,JIS B 0203,ISO7/1
|

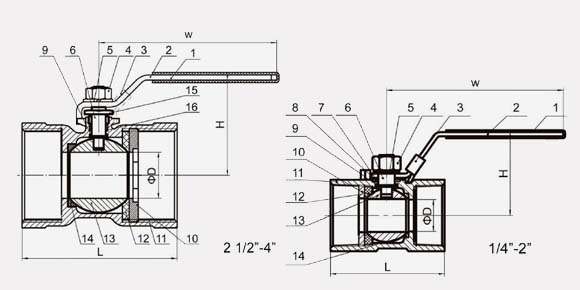

MATERIAL LIST
|
ITEM
|
DESIGNATION
|
MATERIAL
|
|
1
|
HANDLE SLEEVE
|
PVC
|
|
2
|
HANDLE
|
304
|
|
3
|
LOCKING
|
304
|
|
4
|
STEM NUT
|
304
|
|
5
|
SPRING WASHER
|
304
|
|
6
|
STEM
|
304/306
|
|
7
|
PACKING RING
|
304
|
|
8
|
STEM PACKING
|
PTFE
|
|
9
|
THRUST WASHER
|
PTFE
|
|
10
|
CAP
|
CF8/CF8M
|
|
11
|
BODY
|
CF8/CF8M
|
|
12
|
BALL SEAT
|
PTFE
|
|
13
|
BALL
|
304/316
|
|
14
|
BALL SEAT
|
PTFE
|
|
15
|
GLAND NUT
|
304
|
|
16
|
STEM PACKING
|
PTFE
|
DIMENSIONS (mm)
|
SIZE \\ ITEM
|
D
|
L
|
H
|
W
|
S
|
|
1/4
|
5
|
39
|
31
|
65
|
17
|
|
3/8
|
6.8
|
44
|
36
|
85
|
21
|
|
1/2
|
9.2
|
56.5
|
41
|
95
|
25
|
|
3/4
|
12.5
|
59
|
44
|
95
|
32
|
|
1
|
15
|
71
|
48
|
111
|
38
|
|
1.1/4
|
20
|
78
|
54
|
111
|
49
|
|
1.1/2
|
25
|
83
|
65
|
135
|
53
|
|
2
|
32
|
100
|
72
|
135
|
65
|
|
2.1/2
|
38
|
120
|
80
|
154
|
83
|
|
3
|
50
|
140
|
100
|
191
|
98
|
|
4
|
64
|
170
|
129
|
246
|
127
|
|
|
|
|
| |
