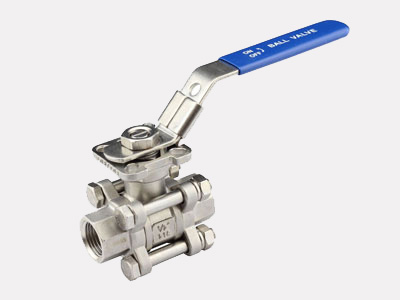

FEATURES
|
1000PS/PN63
|
Full Port
|
|
Investment Casting
|
Blow-out Proof Stem
|
|
ISO5211 Mounting Pad
|
PED97/23/EC(CE0035) Approved
|
|
Casting Approved AD2000-WO
|
Inspection Testing: EN12266, API598
|
Thread: ASME B1.20.1 BS21.DIN2999/259, ISO228-1,JIS B 0203,ISO7/1
|
MATERIAL LIST
|
ITEM
|
DESIGNATION
|
MATERIAL
|
|
1
|
PLASTIC COVER
|
PLASTIC
|
|
2
|
HANDLE
|
SCS304
|
|
3
|
BOLT
|
SCS304
|
|
4
|
NUT
|
SUS304
|
|
5
|
STEM NUT
|
SUS304
|
|
6
|
PACKING RING
|
SUS304
|
|
7
|
THRUST WASHER
|
SUS304
|
|
8
|
STEM PACKING
|
PTFE
|
|
9
|
BODY SEAL
|
PTFE
|
|
10
|
CAP
|
CF8/CF8M
|
|
11
|
BOLT
|
SUS304
|
|
12
|
THRUST WASHER
|
SUS304
|
|
13
|
NUT
|
SUS304
|
|
14
|
BODY
|
CF8/CF8M
|
|
15
|
BALL
|
CF8/CF8M
|
|
16
|
STEM SEAL
|
PTFE
|
|
17
|
STEM
|
SUS304
|
|
18
|
GLAND RING
|
SUS304
|

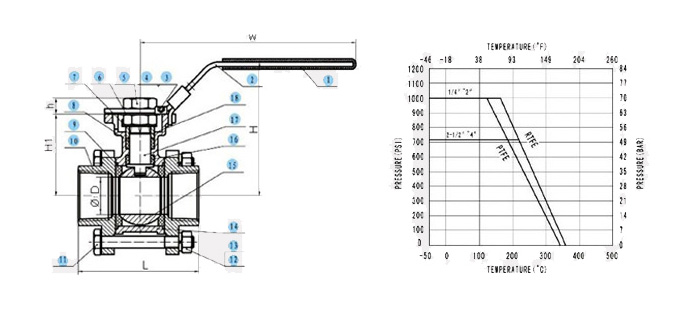

DIMENSION TABLE
|
SIZE ITEM
|
1/4\'\'
|
3/8
|
1/2\'\'
|
3/4\'\'
|
1\'\'
|
11/4\'\'
|
11/2\'\'
|
2\'\'
|
21/2\'\'
|
3\'\'
|
4\'\'
|
|
D
|
11
|
12.5
|
15
|
20
|
25
|
32
|
38
|
50
|
65
|
76
|
94
|
|
H
|
69
|
69
|
72
|
78
|
90
|
95
|
105
|
122
|
155
|
164
|
168
|
|
W
|
140
|
140
|
140
|
140
|
162
|
162
|
188
|
188
|
233
|
233
|
233
|
|
H1
|
38.4
|
38.4
|
42
|
48
|
55
|
60
|
70
|
85
|
109
|
118
|
115.5
|
|
H
|
9
|
9
|
9
|
9
|
11
|
11
|
15
|
15
|
20
|
20
|
20
|
|
9
|
9
|
9
|
9
|
11
|
11
|
14
|
14
|
17
|
17
|
17
|
|
D3
|
F03
|
F03
|
F03
|
F03
|
F04
|
F04
|
F05
|
F05
|
F07
|
F07
|
F07
|
|
F04
|
F04
|
F04
|
F04
|
F05
|
F05
|
F07
|
F07
|
F10
|
F10
|
F10
|
|
L
|
64
|
64
|
72
|
80
|
85
|
105
|
113
|
132
|
170
|
186
|
226
|
|
|
|
|
| |
